NTP Series Ultraprecise Metal Film Resistor

  • Part Number：NTP1/10,NTP1/8,NTP1/4,NTP1/2
  • Brand：Microhm
  • Size：-
  • Description：0.2Ω~40MΩ 0.2~1.0W ±0.01% 1~10ppm/K
  • Feature：Ultra-low TCR, high precision, excellent stability, special tolerance and TCR available, epoxy thermosetting plastic package, exc...
  • Toll Free：400-803-9333

Product  Attributes

Resistance Range:

0.2~40MΩ

Power Rating:

0.2~1W

Tolerance:

± 0.01%

TCR:

1~10ppm/K

Size:

-

Mounting Type:

Through Hole

Technology:

Metal Film

Operating Temperature :

-65℃~175℃

  • Details

  • Contact Us

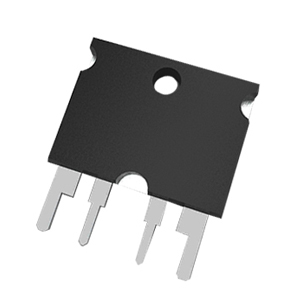

Ⅰ. Product Image




Ⅱ. Features

         Ultra-low TCR
      High precision
      Excellent stability
      Special tolerance and TCR available
      Epoxy thermosetting plastic package, excellent moisture-proof function
      Alternative for metal foil resistor when above 20Ω
      Power rating (200-1200V). For higher rated power, HPVR series is the option


Ⅲ. Applications

       Precision instruments for medic al treatment, test
      Precision amplifiers
