Network resistor is a passive circuit element that is a combination of multiple resistances. It forms a convenient solution when the user needs multiple resistances while constructing a circuit. The manner in which the constituent resistances are combined can vary according to the circuit requirement.



RoHS-compliant resistor network, high-value high-voltage resistors and potential dividers in a wide variety of configurations are now available from Microhm.

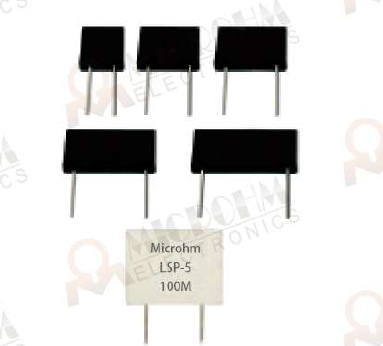

Microhm Networks LSP Series can be used for high voltage test and precision instrument because of its high precision, low temperature coefficient, low voltage coefficient, low noise, high resistance and high working voltage. It has tolerance down to ±0.05%, TCR as low as ±5ppm, tolerance up to 100M, max. working voltage as high as 3000V. Higher power ceramic package is available at request.

This advanced film resistor technology provides the performance characteristics required by the precision input signal circuits of both bench-type and laboratory digital instruments. In addition to requiring less board space, these compact voltage network dividers deliver higher performance than selected discrete resistor sets and thin-film dividers. Manufactured using advance thin-film technology from existing tooling ensures fast turnaround of samples prior to low to medium volume in-house production.
